Produk
Model No: API 5L/A53
Standar: ASTM, API, GB, bs, JIS, KERIUHAN
Bahan: A53-A369, Q195-Q345, ST35-ST52, 10 # -45 #
Bentuk Bagian: Bulat
Tempat Asal: Cina
Aplikasi: Pipa Fluida, PIPA MINYAK, Pipa Pupuk Kimia, Pipa Struktur
Proses Produksi: Efw
Sertifikasi: ce, API
Tabung Khusus: Pipa API
Apakah Paduan: Non-Paduan
Toleransi: ± 1%
Kategori: Pipa Baja Dilas
Layanan Pengolahan: Pembengkokan, Pengelasan, Meninju, Dekorasi, Pemotongan
Tolerance: ±1%
Length: 5.8M 6M 12M Or According to Customer Requirements
Kemasan: Standard Export Packaging
Executive Standard: ASTM A53 Or BS EN10219-1 Or API 5L
Steel Code / Steel Grade: A B X42 X46 X52 X56 X60 X65 X70
Out Diameter: 219MM - 3200MM
Wall Thickness: 3MM - 30MM
Kemasan: Kemasan ekspor standar atau sesuai dengan kebutuhan pelanggan
Produktivitas: 10000 Tons Per Month
Transportasi: Ocean,Land,Express
Dukungan tentang: 10000 Tons Per Month
Sertifikat: ISO 9001
Kode HS: 7306309000
Pelabuhan: Qingdao,Tianjin,Shanghai
Jenis pembayaran: T/T,D/P,L/C
Inkoterm: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery
Proses produksi pipa las jahitan lurus sederhana, dengan efisiensi produksi yang tinggi, biaya rendah, dan perkembangan yang cepat. Kekuatan pipa las spiral umumnya lebih tinggi daripada pipa las jahitan lurus. Billet sempit dapat digunakan untuk menghasilkan pipa yang dilas berdiameter lebih besar, dan billet dengan lebar yang sama juga dapat digunakan untuk menghasilkan pipa yang dilas dengan diameter yang berbeda. Namun, dibandingkan dengan pipa jahitan lurus dengan panjang yang sama, panjang las meningkat 30-100% dan kecepatan produksi lebih rendah. Oleh karena itu, pipa las berdiameter lebih kecil sebagian besar menggunakan pengelasan jahitan lurus, sementara pipa las berdiameter lebih besar sebagian besar menggunakan pengelasan spiral. Pipa las jahitan lepas dibagi menjadi pengelasan busur terendam longitudinal (LSAW) dan pengelasan resistansi listrik (ERW).
Spesifikasi produk
|
Description |
Spiral Welded Steel Pipe, Straight Seam Welded Steel Pipe, SAW Steel Pipe, ERW Steel Pipe, EFW Steel Pipe |
|
Standards |
API 5L ERW PSL1/PSL2, EN39, BS1139, BS1387, EN10255, ASTM A53, A500, A36, A795, ANSI C80, DIN2440, JIS G3444, GB/T3091, GB/T13793 |
|
Certificate |
API 5L ERW PSL1/PSL2, API 5CT, CE, ISO |
|
Material |
Q195, Q215, Q235, Q275, Q295, Q345, S275, S355, 08F, 08, 08AL, 08F, 10F, 10, HG5, DF08 SPHC, M8 |
|
ASTM A53: Gr.A, Gr.B, Gr.C, Gr.D |
|
|
API 5L: Gr.A, Gr.B, X42, X46, X52, X56, X60, X65, X70 |
|
|
GB/T9711: L175, L210, L245, L290, L320, L360, L290, L320, L360, L390, L415, L450, L485, L555 |
|
|
ASTM A252: Gr.1 Gr.2 Gr.3 |
|
|
Type |
Spiral, ERW (Electrical Resistance Weld), EFW (Electric Fusion Welding) |
|
Outside Diameter |
219mm(8")- 3520mm(138") (1/8 inch, 1/4 inch, 1/2 inch, 3/4 inch, 1inch, 1 1/4 inch, 1 1/2 inch, 2inch, 2 1/2 inch, 3inch, 3 1/2 inch, 4inch, 5 inch, 6inch, 8 inch, 10 inch, 12inch, 14inch, 16 inch, 18 inch, 20 inch, 22 inch, 24 inch, 26inch, 28 inch, 30 inch, 32 inch, 34 inch, 36 inch, 38 inch, 40 inch, 42 inch, 44 inch, 46 inch, 48 inch) |
|
Thickness |
3mm~220mm (SCH5,SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS, SCH80,SCH100,SCH120,SCH140,SCH160, XXS) |
|
Length |
6m-12m, or as required |
|
Outside Coating |
Anti-rust oil, black painting. |
|
Epoxy Coating according to AWWA C-210 |
|
|
Bitumen Coating according to DIN30672, BS534 |
|
|
Coal- Tar Enamel Coating according to AWWA C-203 |
|
|
3 Layer polyethylene Coating according to DIN30670 |
|
|
3 Layer Polypropylene Coating according to DIN30678 |
|
|
Inside Coating |
Epoxy lining according to AWWA C-210 |
|
Bitumen Lining according to DIN30673, BS534 |
|
|
Coal-Tar Enamel Lining according to AWWA C-203 |
|
|
Cement Mortar Lining according to AWWA C-205, BS534 |
|
|
Testing and Inspection Reports |
EN 10204 3.1, Mill TC EN 10204 3.1, Third Party Inspection Reports, Visual Inspection Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Chemical and Mechanical Reports, NABL Approved Lab |
|
Price Term |
EX-Work, FOB, CFR, CIF |
|
Package |
Wooden box, bundled for export standard or as required |
|
Payment Term |
T/T, L/C, |
|
Delivery Time |
25-45 days (based on quantity) after receiving advanced payment |
|
Application |
a) General service industries (petroleum, food, chemical, paper, fertilizer, fabric, aviation and nuclear) b) Fluid, gas and oil transport c) Pressure and heat transmission d) Construction and ornament e) Boiler heat exchangers |
ASTM A53 Grade B Properti Kimia Pipa %
|
|
Type S(seamless) |
Type E(electric-resistance welded) |
Type F(furnace-welded pipe) |
||
|
|
Grade A |
Grade B |
Grade A |
Grade B |
Grade A |
|
Carbon max. % |
0.25 |
0.30 |
0.25 |
0.30 |
0.30 |
|
Manganese % |
0.95 |
1.20 |
0.95 |
1.20 |
1.20 |
|
Phosphorous, max. % |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
|
Sulfur, max. % |
0.045 |
0.045 |
0.045 |
0.045 |
0.045 |
|
Copper, max. % |
0.40 |
0.40 |
0.40 |
0.40 |
0.40 |
|
Nickel, max. % |
0.40 |
0.40 |
0.40 |
0.40 |
0.40 |
|
Chromium, max. % |
0.40 |
0.40 |
0.40 |
0.40 |
0.40 |
|
Molybdenum, max. % |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
|
Vanadium, max. % |
0.08 |
0.08 |
0.08 |
0.08 |
0.08 |
Variasi yang diizinkan dalam diameter luar
Diameter luar pada titik mana pun tidak boleh bervariasi dari standar yang ditentukan lebih dari:
|
For NPS 1 1/2 and Smaller Sizes |
For NPS 2 and Larger Sizes |
||
|
1/64″ |
1/32″ under |
1% over |
1% under |
Persyaratan tarik
|
|
Seamless and Electric-resistance-welded |
Continuous-welded |
|
|
|
Grade A |
Grade B |
|
|
Tensile Strength, min., psi |
48,000 |
60,000 |
45,000 |
|
Yield Strength, min., psi |
30,000 |
35,000 |
25,000 |

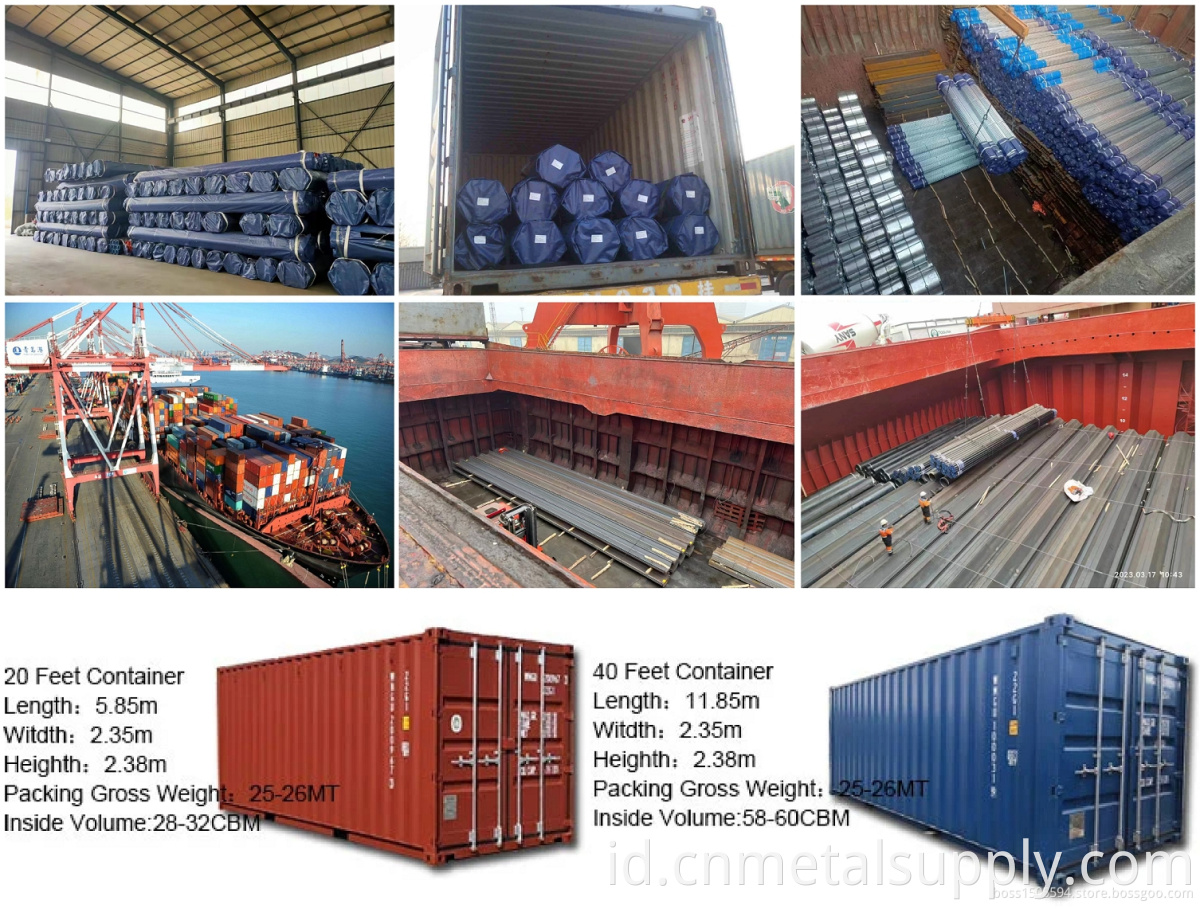

Pengemasan dan Transportasi
Kami menawarkan berbagai moda transportasi tergantung pada tujuan pelanggan: transportasi kereta api dan transportasi kapal ， dll. Tanda pengiriman harus terdiri dari: merek dagang, nama penjual, nama produk, standar yang berlaku, spesifikasi, No. Paket, No. Kontrak, Panas Tidak., Tanggal produksi, metode penimbangan, bobot bersih, berat kotor, penerima dan simbol perlindungan, dll.
