Model No: EN10028-2 16MO3
Merek: Huitong
Origin: CINA
Standar: ASTM
Tempat Asal: Cina
Jenis: Plat Baja, Gulungan baja
Proses Produksi: Hot Rolled, Cold Rolled
Pengobatan Permukaan: Dilapisi, Galvanis
Aplikasi: Pelat Boiler, Plat Kontainer, Pelat Flange, Plat Kapal
Baja Khusus: Plat Baja Berkekuatan Tinggi, Baja Tahan Aus, Baja Silikon
Toleransi: ± 1%
Kategori: Lembaran baja canai dingin, Lembaran Baja Galvanis Panas, Pelat Kapal Boiler, Plat Paduan Rendah, Lembaran Baja Galvalum, Piring Kotak-kotak, Lembaran baja canai panas, Plat Baja, Plat Baja Kapal, Lembaran Baja Warna Dilapisi, Lembaran Baja Elektro-Galvanis
Layanan Pengolahan: Pengelasan, Pembengkokan, Dekorasi, Pemotongan, Meninju
Delivery Status: hot rolling or normalizing + tempering, the specific delivery status should be noted in the MTC.
Packaging Details: Standard export seaworthy packing or as required.
Waktu pengiriman: 7-14 days
Moq: 1PC
Ketebalan: from 5mm to 200mm
Width: from1,500mm to 2,500mm
Length: from 6,000mm to 12,000mm
Sertifikat: Cutting, welding, bending
Pelabuhan: Tianjin\Qingdao\Shanghai
Package: Standard Exportation Package
Kemasan: Kemasan Ekspor Standar
Produktivitas: 5000 TONS/MONTH
Transportasi: Ocean,Land,Air,Express,Others
Tempat asal: CINA
Dukungan tentang: 5000 TONS/MONTH
Kode HS: 7208512000
Jenis pembayaran: L/C,T/T,D/P,Paypal,Money Gram,Western Union,Others
Inkoterm: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery

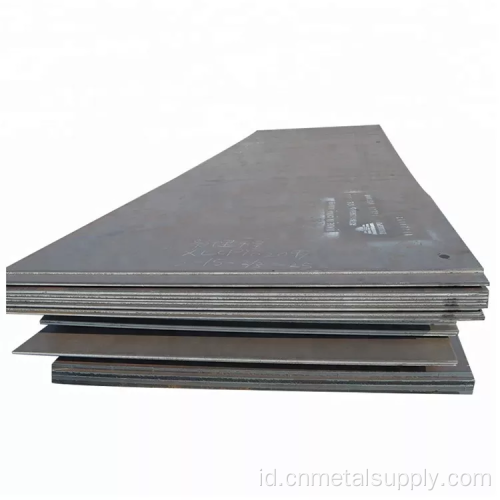

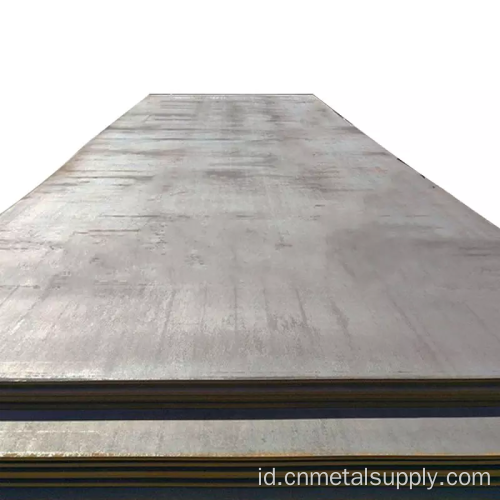

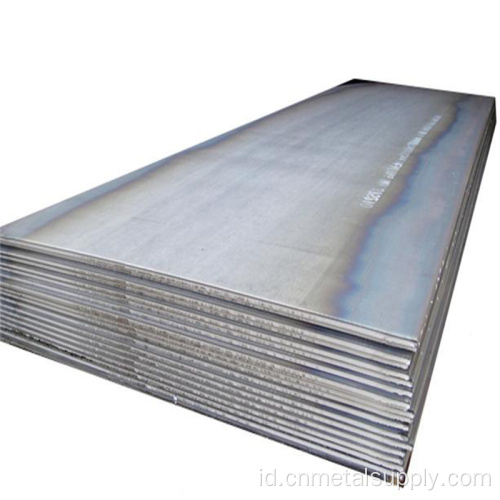

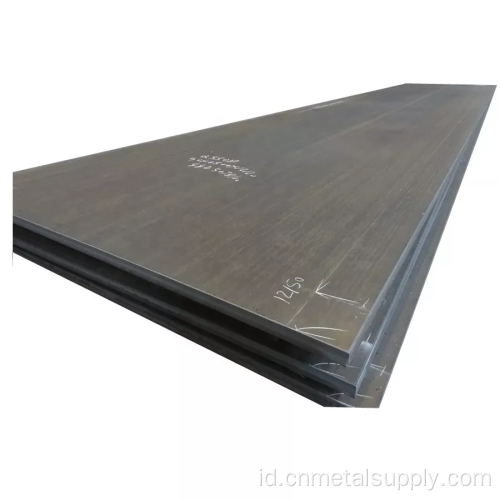

EN 10028-2 16MO3 Pelat baja paduan adalah salah satu baja untuk baja boiler.EN10028 16MO3 Steel terutama digunakan untuk boiler dan bejana tekanan dengan suhu tinggi setara dengan DIN17155 15MO3 dan UNI5869 15M03, 15D3 (NFA 36205) dan ASTM A204, BB.B. Pelat baja .
Spesifikasi pelat 16MO3
| Grade | ASTM A204 EN10028-2 16MO3, SA 204 M Gr (A, B, C) Hot Rolled Plate |
|---|---|
| ASTM A204 16Mo3 Plate Specifications | ASTM A204 / ASME SA204, SA 204 M gr (A, B, C) |
| 16Mo3 / SA 204 Steel Plate Standard | ASTM, ASME, and API |
| ASTM A204 16Mo3 Alloy Steel plates Thickness | 8-700mm |
| 16mo3 Plate Width | 1500- 4020mm |
| SA 204 Gr B 16mo3 Plate Length | 3000-27000mm |
| 16mo3 Plate Weight | Max 35 tons per plate |
| ASTM A204 Gr.B 16Mo3 Plates Delivery Condition | AR, TMCP, N, T, A, N&T, Q&T as required, as well as Z15, Z25, Z35. |
| 16Mo3 Cr-Mo steel plate Packing | Loose, Bundle and Bare, According to Customer requirement |
| 16mo3 Plate Application | Petroleum, power plants, chemical engineering, boilers and other industries for the production of the reactor, heat exchangers, boiler, separators, tank, gas tank, liquefied petroleum gas cylinders, Hydropower high-pressure pipes, turbine spiral case equipment and components. |
| 16Mo3 clad steel plate Specialize | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| 16Mo3 Steel Plates Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| ASTM A204 16Mo3 Alloy Steel plates Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| ASME SA 204 16Mo3 Plates Hardness |
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
|
|
16Mo3 European standard container plate chemical composition (wt%):
|
||||||
|
Material
|
C
|
Si
|
Mn
|
P
|
S
|
Ni
|
|
EN10028-2 16Mo3
|
0.12 - 0.2
|
≤0.35
|
0.4 - 0.9
|
≤0.025
|
≤0.010
|
≤0.3
|
|
Material
|
Cr
|
Mo
|
Cu
|
Alt
|
Als
|
N
|
|
EN10028-2 16Mo3
|
≤0.3
|
0.25 - 0.35
|
≤0.3
|
≥0.02
|
≥0.015
|
≤0.012
|
|
16Mo3 European standard container plate mechanical properties
|
|||||
|
Material
|
Yield strength Rm(MPa)
|
Tensile strength Rm(MPa)
|
Extension rate A5(%)
|
Impact temperature ()
|
Punch Aku(J)
|
|
16Mo3
|
≥240
|
430～590
|
≥22
|
20
|
≥31
|
|
USA
|
Germany
|
Japan
|
France
|
England
|
Italy
|
Spain
|
Sweden
|
Poland
|
Czechia
|
Austria
|
Inter
|
|
-
|
DIN,WNr
|
JIS
|
AFNOR
|
BS
|
UNI
|
UNE
|
SS
|
PN
|
CSN
|
ONORM
|
ISO
|
|
A204Gr.A
|
15Mo3
|
STBA12
|
15D3
|
1503-243B
|
15Mo3
|
16Mo3
|
2912
|
16M
|
15020
|
15Mo3KW
|
F26
|
|
A204Gr.B
|
16Mo3
|
240
|
16Mo3
|
P26
|
|||||||
|
243
|
TS26
|
Aplikasi khas pelat baja 16mo3
