Beranda > Produk > Pelat baja > Pelat baja pembuluh tekanan > ASTM A537 Class1 Class2 Pressure Vessel Steel Plate

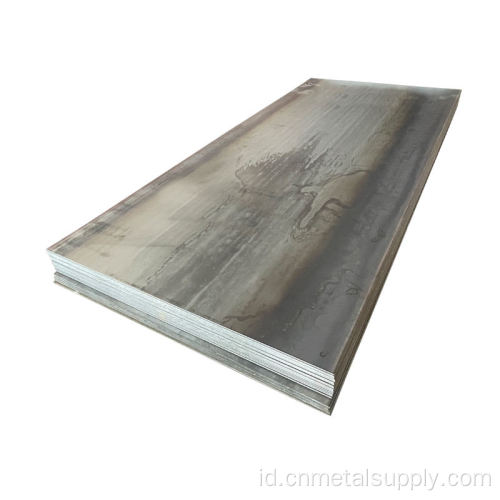

ASTM A537 Class1 Class2 Pressure Vessel Steel Plate
  • ASTM A537 Class1 Class2 Pressure Vessel Steel Plate
  • ASTM A537 Class1 Class2 Pressure Vessel Steel Plate
  • ASTM A537 Class1 Class2 Pressure Vessel Steel Plate
  • ASTM A537 Class1 Class2 Pressure Vessel Steel Plate

ASTM A537 Class1 Class2 Pressure Vessel Steel Plate

thickness:
option:
Share:
  • Deskripsi Produk
< >
Overview
Atribut Produk

Model No: ASTM A537 Cl1 CL2

Merek: Huitong

Standar: ASTM

Tempat Asal: Cina

Jenis: Plat Baja, Gulungan baja

Proses Produksi: Hot Rolled, Cold Rolled

Pengobatan Permukaan: Dilapisi, Galvanis

Aplikasi: Pelat Boiler, Plat Kontainer, Pelat Flange, Plat Kapal

Baja Khusus: Baja Silikon, Baja Tahan Aus, Plat Baja Berkekuatan Tinggi

Toleransi: ± 1%

Kategori: Lembaran baja canai dingin, Lembaran Baja Elektro-Galvanis, Pelat Kapal Boiler, Lembaran Baja Galvalum, Piring Kotak-kotak, Lembaran Baja Galvanis Panas, Plat Paduan Rendah, Lembaran Baja Warna Dilapisi, Plat Baja Kapal, Lembaran baja canai panas, Plat Baja

Layanan Pengolahan: Pembengkokan, Pengelasan, Dekorasi, Pemotongan, Meninju

Package: Standard Exportation Package

Pelabuhan: Tianjin\Qingdao\Shanghai

Waktu pengiriman: 7-14 days

Delivery Status: hot rolling or normalizing + tempering, the specific delivery status should be noted in the MTC.

Packaging Details: Standard export seaworthy packing or as required.

Moq: 1PC

Ketebalan: from 5mm to 200mm

Width: from1,500mm to 2,500mm

Length: from 6,000mm to 12,000mm

Sertifikat: Cutting, welding, bending

Kemampuan Pasokan & Informasi Tambahan

Kemasan: Kemasan Ekspor Standar

Produktivitas: 5000 TONS/MONTH

Transportasi: Ocean,Land,Air,Express,Others

Tempat asal: CINA

Dukungan tentang: 5000 TONS/MONTH

Kode HS: 7208512000

Jenis pembayaran: L/C,T/T,D/P,Paypal,Money Gram,Western Union,Others

Inkoterm: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery

& pengiriman paket
Menjual unit:
Ton
Tipe paket:
Kemasan Ekspor Standar
Contoh pada gamba:

A537 C Arbon Steel Plate adalah tingkat pelat baja karbon, karbon-silikon yang dipanaskan. Aplikasi tipikal termasuk kapal tekanan yang dirancang untuk layanan suhu sedang dan lebih rendah yang membutuhkan ketangguhan takik yang sangat baik serta tangki penyimpanan API dan pelat baja paduan. Bahan Kelas 1 diproduksi dalam kondisi yang dinormalisasi Kelas 2 diproduksi sebagai pendinginan dan tempered . Kami juga menawarkan pelat baja tahan aus.

Pelat baja A537 CL1Pelat baja A537ASTM A537 Plat Kelas 2ASTM A537 Kelas 2 Pressure Vessel Steel Plate

ASTM A537 Kelas 2 Pelat baja baja tekan

Product Name

ASTM A537 Class 2 Steel Plates

Product Description

ASTM A537 Class 2 plates are normally supplied in the as-rolled condition. The plates may be ordered normalized or stress relieved, or both.

Standard

ASTM A537 is the Standard Specification for Pressure Vessel Plates, Heat-Treated, Carbon-Manganese-Silicon Steel

Equivalents

Not Available

Thickness

6MM to 300MM

Width

1500mm to 4050mm

Length

3000mm to 15000mm

Certification

Mill Test Reports Available as per EN 10204 3.1

Applications

Storage Tanks, Low Pressure Vessels, Temperature Controlled Vessels, Heat Exchangers, Pressure Vessels and Boilers

A537 Class1 Pressure Vessel Plate Ukuran Bagan

  THICKNESS WIDTH LENGTH
CLASS 1 3/16" – 4" 48" – 120" UP TO 480"
CLASS 2 & 3 3/16" – 6" 48" – 120" UP TO 480"

ASTM A537 Kelas Plat Kelas 2

Class Heat Treatment Thickness Yield Strength, min, ksi [MPa] Tensile Strength, min, ksi [MPa]
1 Normalized 21/2 in. and under [65 mm and under]
Over 21/2 to 4 in. [Over 65 to 100 mm] 		50 [345]
45 [310] 		70 [485]
65 [450]
2 Quenched and tempered 21/2 in. and under [65 mm and under]
Over 21/2 to 4 in. [Over 65 to 100 mm]
Over 4 to 6 in. [Over 100 to 150 mm] 		60 [415]
55 [380]
46 [315] 		80 [550]
75 [515]
70 [485]
3 Quenched and tempered 21/2 in. and under [65 mm and under]
Over 21/2 to 4 in. [Over 65 to 100 mm] 		55 [380]
50 [345] 		80 [550]
75 [515]
4 Over 4 to 6 in. [Over 100 to 150 mm] 40 [275] 70 [485]

Astm A537 Analisis Kimia Plat Kelas 2

Grade C Si Mn P S Cr Mo Ni Cu
¡Ü 40 mm > 40 mm
A537 Class 2 0.24 0.15/0.50 0.70/1.35 1.00/1.60 0.035 0.035 0.025 0.080 0.25 0.35

ASTM A537 Kelas 2 Piring Baja Karbon Properti Mekanik Mekanik

Grade Yield (MPa) Tensile (MPa) Elongation Thickness
A50mm A200mm
A537 Class 2 415 550/690 22% - ¡Ü 65
380 515/655 22% - > 65 ¡Ü 100
315 485/620 22% - > 100 ¡Ü 150

Setara dengan kapal tekanan SA 537 CL1

Steel Grade JIS Germany
ASTM/ASME G3115 DIN17155
A537 / SA537 SPV36 19Mn5


Daftar Isi;


  • ASTM A537 Kelas 2 Spesifikasi Bahan Plat.
  • Daftar Harga Pelat Kapal A537 Cl1 Pre Ssure.
  • Jenis SA 537 CL2 Plat Baja STR STR.
  • Plat baja tahan cuaca A537 CL1.
  • ASTM A537 Kelas 2 Plat E Kelas.
  • ASTM A537 Analisis Kimia Lempeng Kelas 1.
  • ASTM A537 Kelas 2 Pelat Baja Karbon Properti Mekanik Tabel.
  • Setara dengan ASTM A 537 Plate Bangunan Kapal.
