Model No: Slip-On Pipe Flanges
Standar: Astm, bs, KERIUHAN, GB
Apakah Paduan: Non-Paduan
Toleransi: ± 1%
Layanan Pemrosesan: Pengelasan, Dekorasi, Meninju
Tolerance: ±1%
Nama Produk: Slip-On Pipe Flanges
Size: 1/2” to 60”, DN 12mm to DN 1500mm
Pressure Class: Class 150 to Class 2,500, PN 2.5 to PN 250
Facing: RF / RTJ
Cabon Steel: A105, A350 LF2
Stainless Steel: A182 F304/F304L/F316/F316L/F321
Alloy Steel: F11, F12
Kemasan: Standard Export Packaging
Kemasan: Kemasan Marinir Standar, atau sebagaimana disyaratkan oleh Pelanggan
Produktivitas: 10000 Tons Per Month
Transportasi: Ocean,Land,Express
Dukungan tentang: 10000 Tons Per Month
Kode HS: 3917400000
Jenis pembayaran: T/T,D/P,Money Gram,L/C
Inkoterm: FOB,CFR,CIF,EXW
Slip-on Flange juga ada sebagai pengurangan di mana flange blank yang lebih besar dipotong untuk mengakomodasi ukuran koneksi yang lebih kecil. Flensa pengurangan slip-on digunakan saat mengurangi ukuran garis di area di mana ada keterbatasan ruang.
Keuntungan dari slip pada flensa:
Flensa slip-on atau lebih flensa umumnya lebih murah daripada flensa lambang, dan untuk efek ini adalah pilihan populer bagi pelanggan kami.
Flensa dan perlengkapan pipa instalasi berbiaya rendah
Lebih sedikit waktu yang dibutuhkan untuk dihabiskan untuk memastikan keakuratan pelat baja paduan pipa potong
Mereka agak lebih mudah untuk menyelaraskan
Flensa slip-on memiliki hub rendah karena pipa tergelincir ke dalam flensa sebelum pengelasan
Flensa dilas baik di dalam maupun di luar untuk memberikan kekuatan baja SMLS yang cukup kuat
Mereka mencegah kebocoran

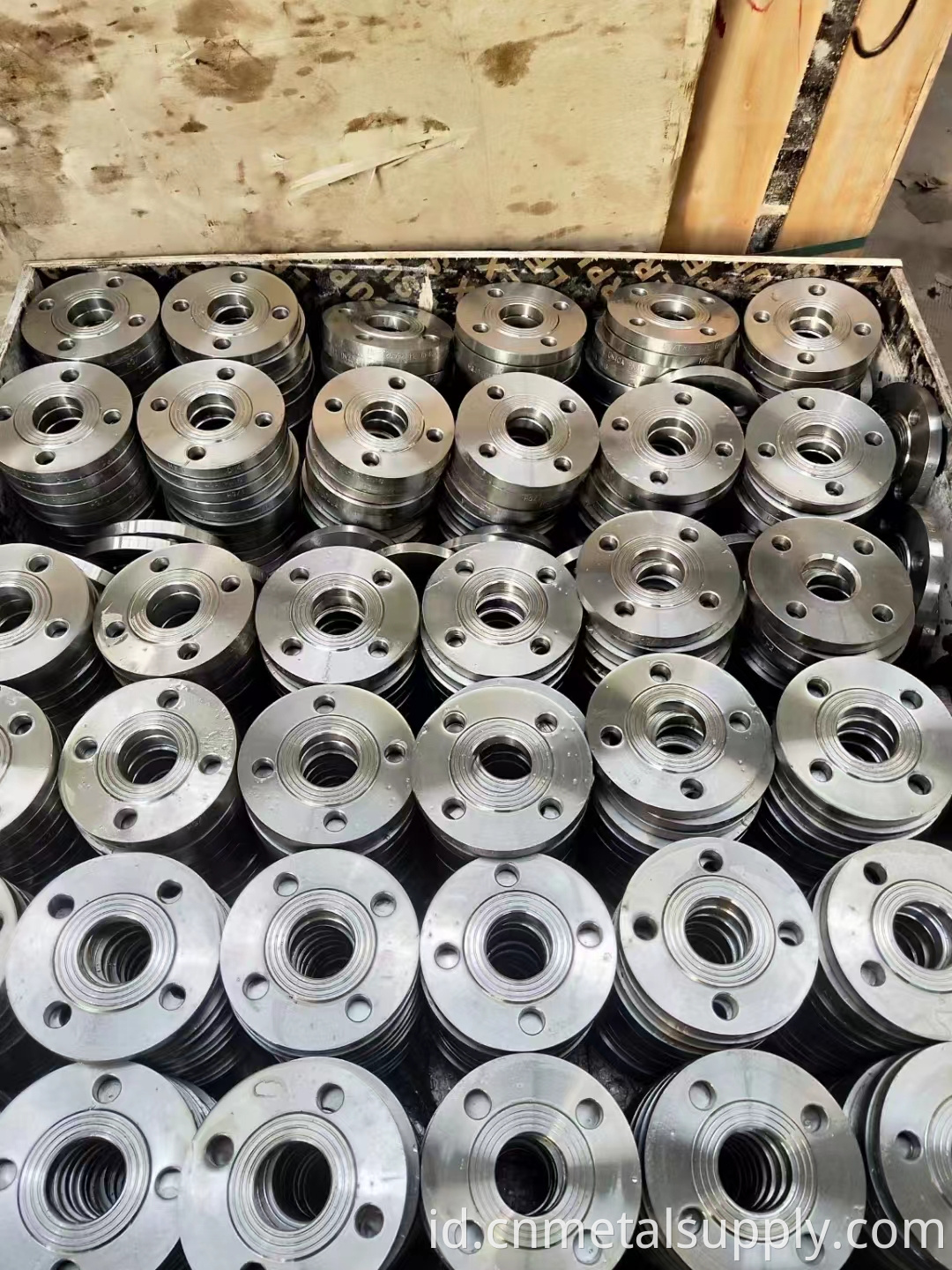

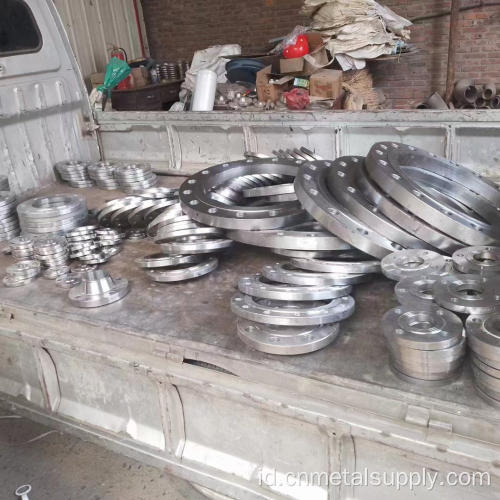

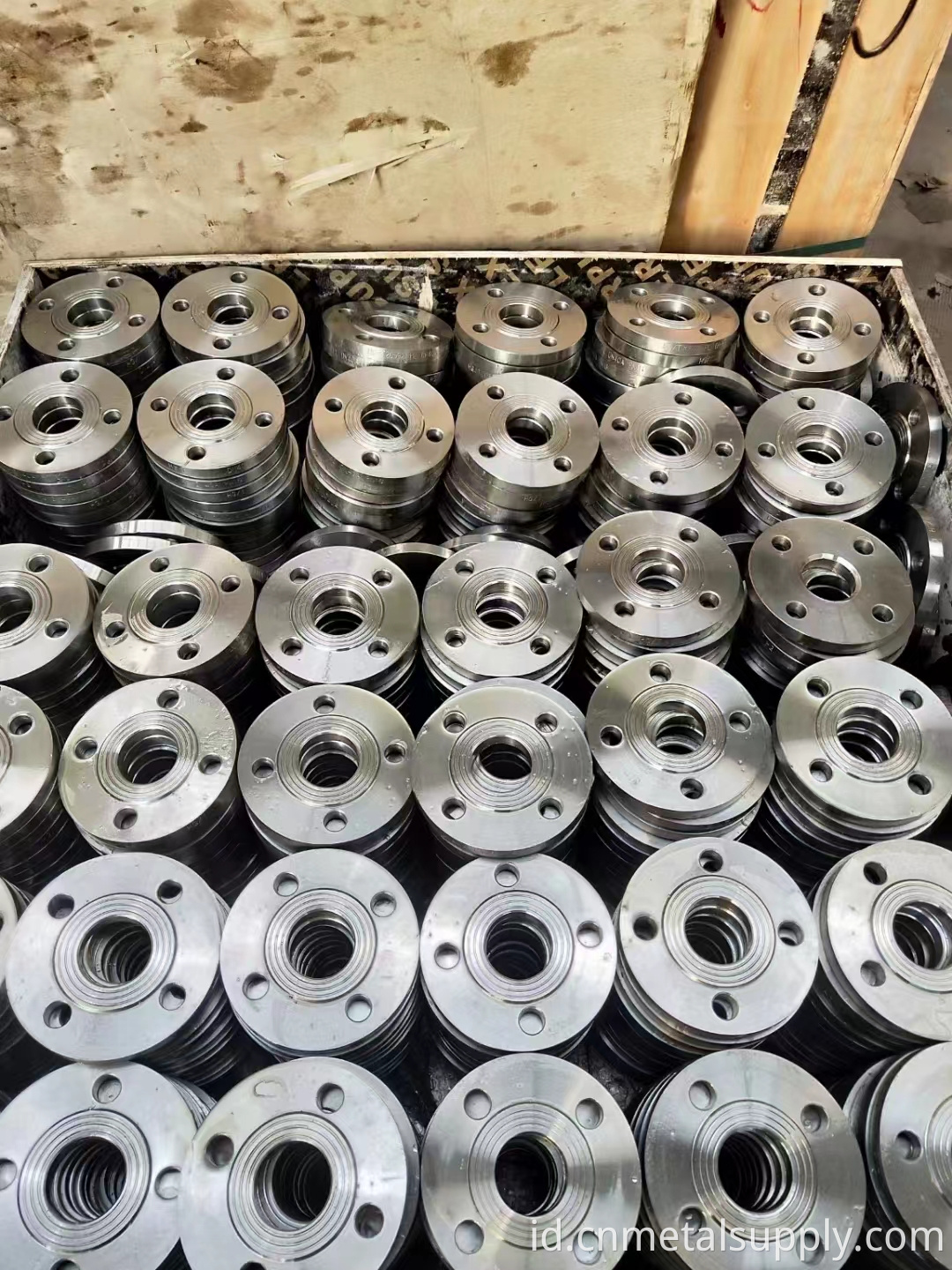

Detail Slip on Flange
Kombinasi flensa dan siku atau flensa dan tee tidak dimungkinkan, karena fitting bernama tidak lurus, yang meluncur total pada slip pada flensa.
Ukuran: 1/2 "hingga 60", DN 12mm ke DN 1500mm.
Kelas Tekanan: Kelas 150 hingga Kelas 2.500, PN 2.5 hingga PN 250 Pipa Baja Alloy
Menghadapi: RF / RTJ
Bahan Flange Slip-On: Pipa Baja SML yang Ditarik Dingin
Slip pada flensa pipa dalam stok termasuk slip AWWA pada flensa pipa, slip ANSI pada flensa pipa, slip bejana tekanan pada flensa pipa dan slip pada flensa pipa yang cocok dengan OD dan pengeboran flensa ASME.
Cabon Steel: A105, A350 LF2
Stainless Steel: A182 F304/F304L/F316/F316L/F321
Baja Paduan: F11, F12
|
Product Name |
Slip on pipe flanges |
|
Material |
Cabon steel: A105, A350 LF2 Stainless steel: A182 F304/F304L/F316/F316L/F321 Alloy steel: F11, F12 |
|
Size |
1/2” to 60”, DN 12mm to DN 1500mm |
|
Pressure Class |
Class 150 to Class 2,500, PN 2.5 to PN 250 |
|
Applications |
Blind Flanges are commonly used in petrochemical, pipe engineering, public services & water works. Blind pipe flanges are often used for high pressure applications. |
|
Delivery Time |
Usually within 7-10 days after receipt of advance payment |
|
Payment Terms |
T/T 30% Down Payment,Balance Will be Paid Before Shippment |
|
Advantage of Blind Flanges |
Slip-On flanges or SO flanges are commonly lower in price than weld-neck flanges, and to this effect are a popular choice for our customers. Low cost installation Less time needed to spent on ensuring the accuracy of the cut pipe They are somewhat easier to align The slip-on flanges have low hub because the pipe slips into the flange before welding The flange is welded both inside and outside to provide sufficient strength They prevent leakage |
| Nominal Pipe Size | Outside Diameter of Flange | Diameter of Raised Face | Thickness of Flanges Min. | Diameter of Bolt Circle | Diameter of Bolt Holes | Number of Bolts | Approximate Weight kgs |
| NPS | O | R | tf | W | I | n | |
| 1/2 | 90 | 34.9 | 9.6 | 60.3 | 15.9 | 4 | 0.44 |
| 3/4 | 100 | 42.9 | 11.2 | 69.9 | 15.9 | 4 | 0.64 |
| 1 | 110 | 50.8 | 12.7 | 79.4 | 15.9 | 4 | 0.90 |
| 1 1/4 | 115 | 63.5 | 14.3 | 88.9 | 15.9 | 4 | 1.13 |
| 1 1/2 | 125 | 73.0 | 15.9 | 98.4 | 15.9 | 4 | 1.50 |
| 2 | 150 | 92.1 | 17.5 | 120.7 | 19.1 | 4 | 2.38 |
| 2 1/2 | 180 | 104.8 | 20.7 | 139.7 | 19.1 | 4 | 4.09 |
| 3 | 190 | 127.0 | 22.3 | 152.4 | 19.1 | 4 | 4.97 |
| 3 1/2 | 215 | 139.7 | 22.3 | 177.8 | 19.1 | 8 | 6.20 |
| 4 | 230 | 157.2 | 22.3 | 190.5 | 19.1 | 8 | 7.18 |
| 5 | 255 | 185.7 | 22.3 | 215.9 | 22.2 | 8 | 8.83 |
| 6 | 280 | 215.9 | 23.9 | 241.3 | 22.2 | 8 | 11.55 |
| 8 | 345 | 269.9 | 27.0 | 298.5 | 22.2 | 8 | 20.07 |
| 10 | 405 | 323.8 | 28.6 | 362.0 | 25.4 | 12 | 28.87 |
| 12 | 485 | 381.0 | 30.2 | 431.8 | 25.4 | 12 | 44.18 |
| 14 | 535 | 412.8 | 33.4 | 476.3 | 28.6 | 12 | 59.07 |
| 16 | 595 | 469.9 | 35.0 | 539.8 | 28.6 | 16 | 76.36 |
| 18 | 635 | 533.4 | 38.1 | 577.9 | 31.8 | 16 | 94.51 |
| 20 | 700 | 584.2 | 41.3 | 635.0 | 31.8 | 20 | 123.94 |
| 24 | 815 | 692.2 | 46.1 | 749.3 | 34.9 | 20 | 187.90 |
| Norminal Pipe Size | O.D.of Flange, O | Min.Thick-ness of BL Flange, tf | Raised Fase Diam., R | Diam of Bolt Circle | No.of Bolt Holes | Diam.of Bolt Hole | Approxi-mate Weight kgs |
| 26 | 890 | 111.3 | 727 | 806.4 | 28 | 44.5 | 528.79 |
| 28 | 950 | 115.9 | 784 | 863.6 | 28 | 47.6 | 626.51 |
| 30 | 1020 | 127.0 | 841 | 927.1 | 28 | 50.8 | 789.17 |
| 32 | 1085 | 134.9 | 895 | 984.2 | 28 | 54.0 | 946.54 |
| 34 | 1160 | 144.2 | 953 | 1054.1 | 24 | 60.3 | 1158.72 |
| 36 | 1215 | 150.9 | 1010 | 1104.9 | 28 | 60.3 | 1323.63 |
Kategori Produk : Baja Struktural > Flensa dan perlengkapan pipa
Beranda > Produk > Baja Struktural > Flensa dan perlengkapan pipa > Kelas 150 So Slip-On Pipe Flanges
